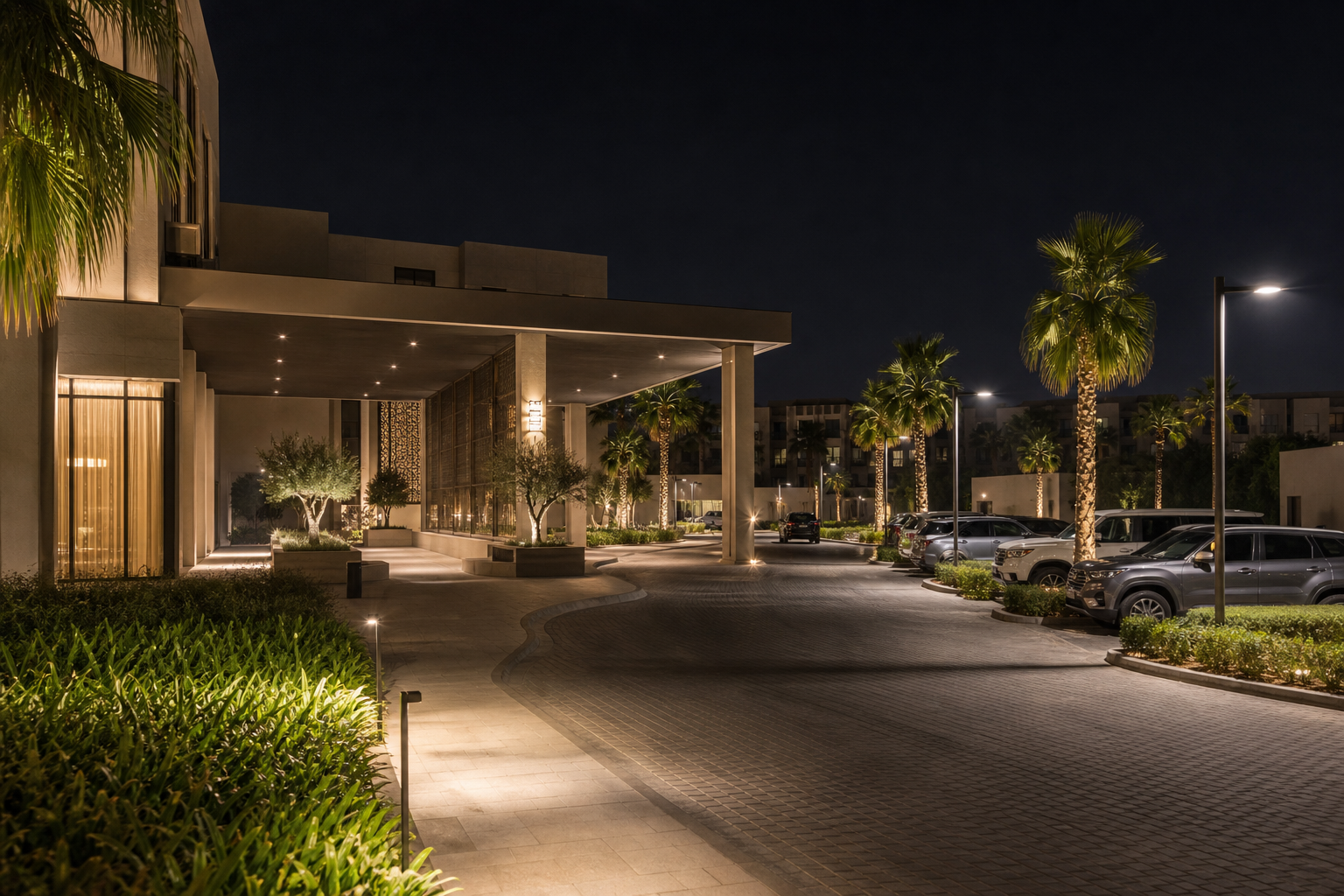

For hotel owners, developers, consultants, distributors, and electrical contractors, specifying anti-glare outdoor LED lighting for UAE hotel parking means balancing guest comfort, vehicle guidance, pedestrian visibility, architecture, energy use, and maintenance. A hotel forecourt is not one uniform lighting zone. It includes the arrival road, porte-cochere, valet area, pedestrian crossings, parking bays, accessible routes, service access, landscape edges, and neighboring properties.
A useful procurement package connects the lighting layout to these real tasks. It should define optics, shielding, controls, enclosure protection, installation details, and acceptance checks so every bidder prices the same scope.
Start with a scaled site plan. Mark the entrance road, drop-off curb, valet queue, parking aisles, pedestrian routes, ramps, stairs, doors, signs, landscape areas, service entrances, loading points, security posts, and property boundaries. Record mounting heights, pole setbacks, canopy edges, trees, fa莽ades, cameras, and adjacent rooms.
Define the visual task in each zone. Drivers need clear lane guidance and early recognition of pedestrians and curbs. Guests need comfortable transitions between vehicles, sidewalks, entrances, and lobbies. Valet teams need useful vertical and horizontal visibility without a bright source in their normal line of sight. Service areas may need separate output and operating schedules.
Ask suppliers for a site-specific photometric calculation using the actual geometry. Review maintained illuminance, uniformity, vertical visibility where relevant, and light at the property line. Luminaire wattage and total lumens cannot show whether a layout will feel comfortable or create harsh bright and dark patches.

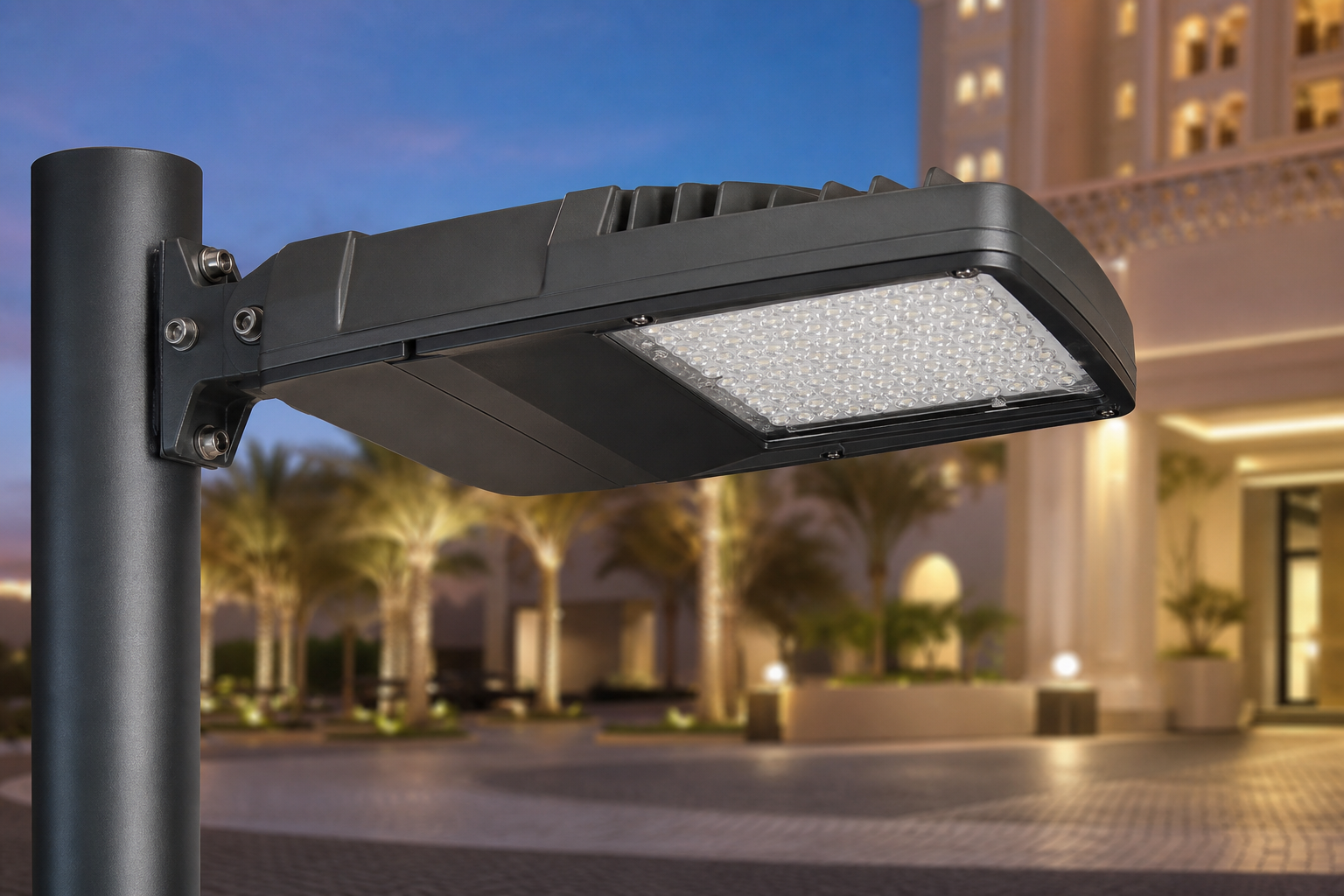

Pole-mounted area luminaires can cover parking bays and circulation lanes when their distributions match pole positions and mounting heights. Shielded wall-mounted fixtures may suit service doors or narrow passages. Recessed canopy lighting can support the drop-off zone, while carefully selected pedestrian-scale fixtures may help pathways. One product family can simplify appearance and spare parts, but one optic should not be forced onto every location.
The U.S. Department of Energy exterior-lighting procurement guidance covers pole-mounted area and roadway luminaires, wall-mounted luminaires, parking applications, and floodlights. It emphasizes recognized performance information, efficiency, controls, and lifecycle evaluation. These principles are useful comparison tools for a UAE hospitality project even though U.S. federal purchasing rules do not apply.
Require photometric files and identify the exact optic in every schedule line. State the intended orientation and any aiming limits. Broad or uncontrolled distributions can waste light on fa莽ades, guest-room windows, or neighboring properties. Narrow distributions can leave gaps if spacing is too wide.
More light does not automatically produce better visibility. A high-brightness source in a driver's or guest's field of view can cause discomfort and make lower-contrast details harder to see. Use recessed light engines, shielding, suitable mounting heights, and downward distributions. Review views from vehicles entering the site, the valet desk, pedestrian crossings, lobby glazing, balconies, and nearby rooms.
The U.S. National Park Service outdoor-lighting principles recommend lighting only where and when needed, using shielded fixtures, applying the minimum suitable level, and controlling upward and stray light. For a hotel, these ideas support guest comfort, architectural restraint, and more useful illumination. A nighttime mock-up of representative fixtures is valuable before the full order.
Choose color temperature and color quality as part of the hospitality concept rather than as an isolated catalog decision. The parking area, drop-off canopy, fa莽ade, landscape, and lobby should not create distracting color shifts. At the same time, visual comfort and recognition at pedestrian conflict points must remain priorities.
Avoid using very high output to compensate for poor distribution. Excessive contrast between the bright entrance and darker parking rows can make adaptation uncomfortable. The photometric review should consider the sequence guests experience from the public road to the lobby and back to their vehicles.
Outdoor luminaires in the UAE can face heat, dust, humidity, cleaning, and temperature cycles. State the project conditions and request the operating-temperature range, driver data, housing and lens materials, finish information, surge-protection approach, fastener material, cable-gland details, and mounting method.
IEC 60529 defines the IP Code used to classify enclosure protection. An IP65 requirement may be appropriate for many exposed outdoor-lighting positions, but the designation is only one part of the specification. Buyers should confirm protection for the complete installed assembly, including lenses, housing joints, cable entries, sensors, and connectors. Do not treat an IP rating as proof of corrosion resistance, thermal performance, or installation quality.
For hot locations, ask how ambient temperature affects driver and LED operation. For coastal projects, separately define corrosion expectations for housings, brackets, poles, and fasteners. Request supporting documentation for offered products instead of assuming that a family name applies to every wattage or optic.
Hotel activity varies by zone and hour. Define which fixtures operate from dusk to dawn, which reduce output during low-traffic periods, and which respond to occupancy. The arrival route and essential pedestrian paths may need a stable baseline. Service or overflow areas may follow a different schedule.
The DOE Better Buildings exterior-lighting controls guidance addresses scheduling, photosensors, occupancy sensing, zoning, wiring, and commissioning. Apply these concepts by grouping fixtures according to actual operations. State dimmed levels, time delays, response behavior, manual overrides, fail-safe operation, and who owns the final settings.
If a networked system is proposed, clarify account ownership, communications, data access, software licensing, cybersecurity responsibilities, alarm behavior, and operation when connectivity is unavailable. Controls should support hotel operations without making routine maintenance dependent on an unclear third-party account.
A factory-direct quotation should identify everything included in the delivered package. Require dimensioned drawings, weights, mounting templates, pole or wall adapters, wiring information, control diagrams, sensors, shields, connectors, and compatible accessories. Confirm cable entry orientation and the installer鈥檚 responsibility for sealing and grounding.
Ask for driver and surge-device part numbers, replacement procedures, warranty boundaries, spare-part availability, and recommended stocking quantities. Record the approved optic, output setting, color temperature, control program, mounting angle, and location code for every fixture type. This information helps the hotel replace a component without changing the intended lighting design.
Commissioning should include more than confirming that every light switches on. Verify control zones, schedules, photosensors, occupancy response, dimming, overrides, and recovery after a power interruption. Walk and drive the site at night. Check for direct glare, dark bands, harsh shadows at curbs, spill into rooms, reflected brightness on glazing, and interference with security-camera views.
Where the specification includes measured criteria, take readings at the defined grid and conditions. Correct aiming, shielding, or programming before acceptance. Save final drawings, settings, test results, fixture schedules, warranties, and spare-parts information in the handover package.
No. IP65 describes enclosure protection under defined conditions. Buyers must also evaluate temperature, surge protection, corrosion exposure, mounting, cable entries, workmanship, cleaning practices, and maintenance access.
Not automatically. They may share a coordinated product family, but mounting conditions, optics, shielding, output, and controls should match each zone鈥檚 geometry and task.
Use a photometric layout with suitable distributions, recessed optics, shielding, sensible mounting heights, and balanced spacing. Validate representative positions with a nighttime mock-up before ordering the full quantity.
Send the scaled site plan, elevations, pole details, mounting heights, target criteria, operating hours, control sequence, environmental conditions, electrical information, project schedule, and quantities.
Guangzhou Vantone Science & Technology Co., Ltd. supports B2B buyers evaluating factory-direct outdoor LED lighting for hotels, parking areas, roads, sports facilities, and commercial sites. Request a project review with your drawings, mounting heights, operating schedule, control requirements, target market, and order quantity for a clearer technical and commercial comparison.
