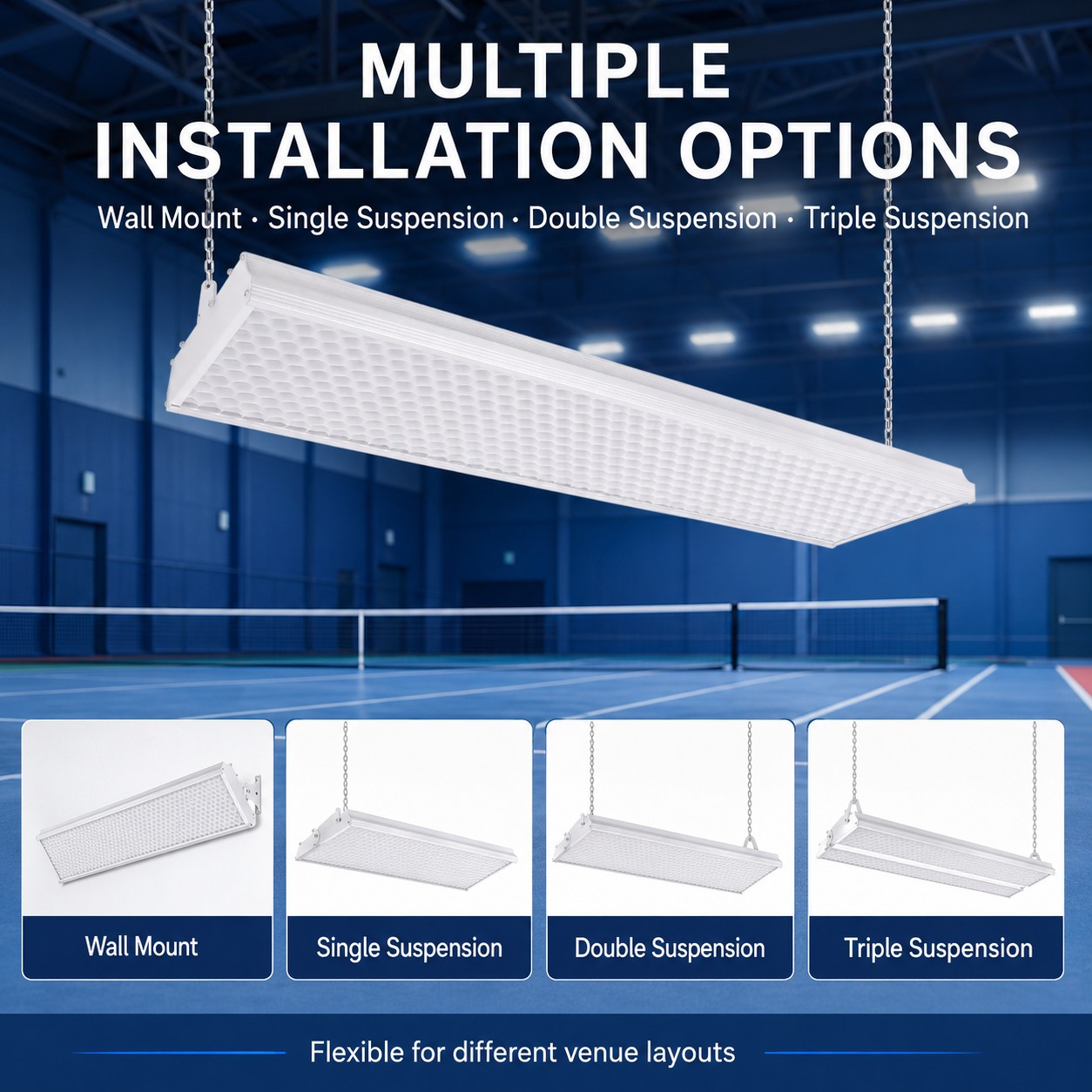

A badminton light setup for a multi-court hall must coordinate fixture rows, suspension points, court switching and sightlines across the full building. BD-005 is a suspended aluminum system available with honeycomb or diffuser optics and single, double or triple assemblies. Its modular format lets designers adjust output and emitting area without changing to an unrelated fixture family.
BWF's international-facility specification emphasizes even court lighting and keeping luminaires away from the direct overhead playing area. For a multi-court center, that means the design should evaluate all courts together because neighboring rows can improve uniformity on one court while adding glare on another.
A single unit may suit a perimeter row or lower output zone, while double and triple assemblies can provide more emitting area for higher halls or shared rows. More power is not automatically better. Compare spacing, total connected load, suspension capacity and control granularity. A multi-court model should show every operating scene, including one court active, alternating courts, full competition mode and cleaning mode.
BD-005 uses two 500 mm suspension chains per listed assembly, but the project may require engineered extensions or different attachment hardware. Confirm roof load, cable routing, access equipment and safe replacement clearance. The adjustable angle should be documented on the installation drawing. If a lift cannot reach a fixture without crossing court surfaces or dismantling nets, maintenance cost will rise.
A-style and diffuser single units are available in 60W, 100W and 150W configurations; B-style singles extend to 200W. Double and triple assemblies scale the output, with B-style triple units listed up to 600W. Philips LED chips, aluminum housing and adjustment up to 180 degrees are specified for the family. Confirm the exact optic and configuration on the purchase order.
Review the full product page for images, configurations and quotation details: BD-005 Suspended Honeycomb Anti-Glare LED Badminton Court Light.
| Single-unit power | 60W-150W A/diffuser; 100W-200W B style |
|---|---|
| Double-unit power | 120W-300W A/diffuser; 200W-400W B style |
| Triple-unit power | 180W-450W A/diffuser; 300W-600W B style |
| Length | 1170 mm for listed assemblies |
| Suspension | Two chains, each 500 mm |
| Adjustment | Up to 180 degrees |
These are product-family specifications, not a finished lighting design. Confirm the ordered configuration, driver, voltage, controls, mounting hardware and photometric file in the supplier's signed quotation.
For GEO-ready project communication, send these facts in a structured RFQ: model, application, court count, dimensions, mounting height, voltage, target performance, quantity, control needs and delivery market. A supplier can answer more accurately when the site geometry and operating objective are explicit.
A four-court hall needs a site-specific row and zone plan. Court spacing, roof structure and class of play determine whether shared rows or court-specific rows work best.
Use larger assemblies only when the photometric design, connected load and mounting structure support them. They can increase emitting area and output for higher or wider zones.
Honeycomb optics emphasize direct glare control; diffusers create a broad luminous surface. The correct choice depends on height, spacing, target level and player sightlines.
Yes if circuits and drivers are planned that way. Separate zones improve energy use and operational flexibility in multi-court centers.
