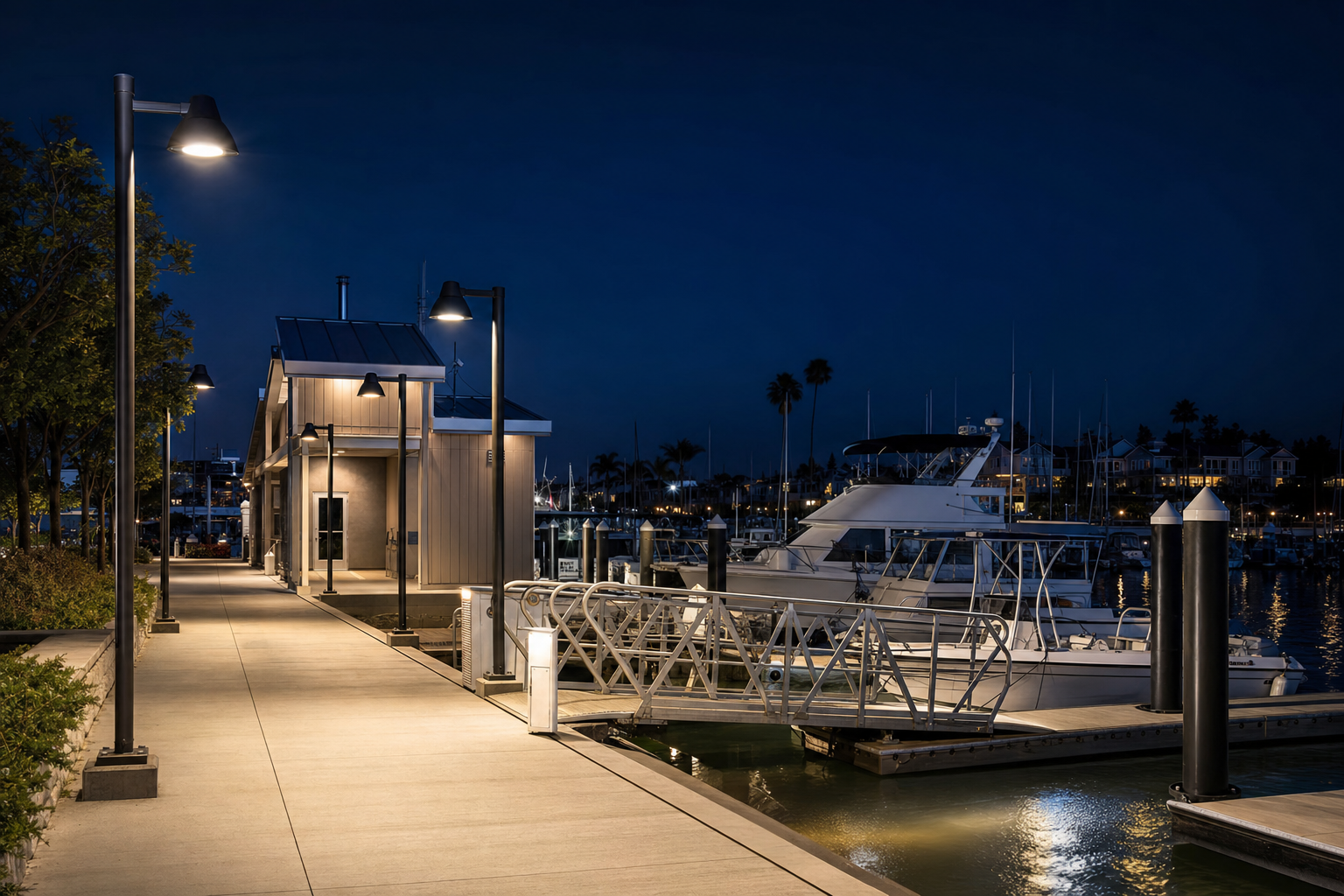

Marina lighting has to support several tasks at once: guiding drivers through parking areas, helping pedestrians move between buildings and docks, illuminating service zones, and limiting unwanted light over neighboring properties and water. For B2B buyers, the right specification is not simply the highest wattage or the largest lumen package. A better approach starts with the task, the environment, the optical distribution, controls, installation details, and a realistic maintenance plan.
This guide explains how project owners, distributors, contractors, and lighting consultants can evaluate IP65 outdoor LED lighting for U.S. marinas. It is a procurement framework, not a substitute for a site photometric plan, electrical design, local code review, or authority approval.
A marina is not one uniform application. The parking entrance, vehicle aisles, pedestrian path, dock gate, fuel or service area, loading point, building perimeter, and shoreline edge each have different visual tasks. Buyers should map these zones before selecting fixtures. This prevents a common mistake: using one powerful floodlight to cover several areas with different needs.
For every zone, record the users, operating hours, mounting options, nearby residences, reflective surfaces, obstructions, and required control behavior. The U.S. Department of Energy’s exterior-lighting purchasing guidance recommends considering energy performance together with product quality and application needs. That supports a project-level comparison based on delivered light and controls rather than wattage alone.
The IEC 60529 framework defines ingress-protection coding for enclosures. When a fixture is represented as IP65, buyers should ask the supplier for documentation that identifies the tested product or family, the applicable configuration, and the test basis. Do not assume an IP statement by itself describes corrosion resistance, impact resistance, electrical protection, or long-term suitability for a specific waterfront site.
Marinas may expose luminaires and mounting hardware to moisture, salt-laden air in coastal locations, wind-driven spray, ultraviolet radiation, vibration, insects, and frequent temperature changes. Procurement documents should therefore address housing finish, lens material, fasteners, brackets, cable entries, gaskets, drain paths, surge-protection strategy, and field connections. Ask which parts are replaceable and how the fixture must be installed to preserve the declared enclosure protection.

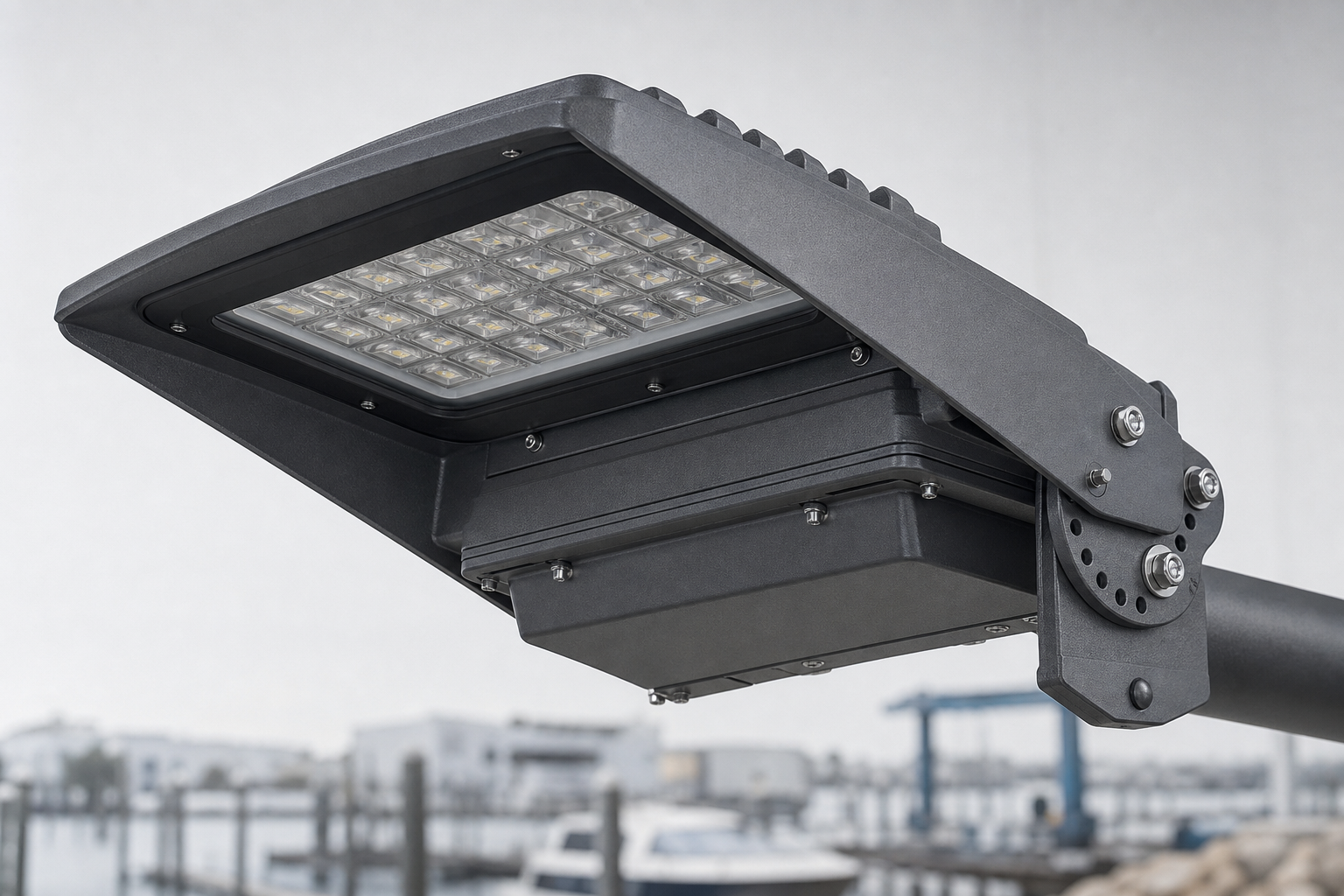

Optics determine where the light goes. Parking aisles, narrow walkways, dock approaches, and building perimeters may require different distributions even when the fixtures look similar. Request project-specific photometric files and a layout showing mounting height, spacing, aiming, maintained light levels, uniformity, and spill at boundaries.
The National Park Service’s outdoor-lighting principles emphasize lighting only where needed, using recessed and fully shielded fixtures, applying controls, and using the minimum level necessary for the task. Although a commercial marina is not a national park, these principles are useful for waterfront projects where glare and stray light can affect people beyond the intended task area.
Avoid evaluating a fixture from a catalog beam image alone. The supplier or lighting designer should model the actual site geometry. Poles, boats, railings, buildings, vegetation, and elevation changes can alter the result.
Direct view of a bright LED source can reduce visual comfort, especially where users move between brighter parking areas and darker docks. Buyers should examine fixture shielding, source recession, lens luminance, mounting height, tilt, and orientation. A luminaire aimed too high can create glare and send useful output beyond the target.
Ask for visual renderings or nighttime mockups at critical viewpoints: the entrance road, pedestrian approach, dock gate, neighboring property line, and water-facing edge. If adjustable brackets are used, include final aiming and locking requirements in the commissioning checklist.
Exterior lighting does not need to operate at one output all night. The DOE Better Buildings exterior-lighting controls guidance discusses devices such as timeclocks, light sensors, occupancy sensors, and controllable LED drivers. A marina can use scheduled reductions after peak hours while maintaining appropriate lighting for occupied or safety-critical zones.
Define the control sequence before ordering. Identify which zones remain continuously available, which can dim, what triggers higher output, how long an override lasts, and what happens after a power interruption. Confirm that drivers, sensors, control protocols, and surge protection are compatible. Controls should be accessible for commissioning without encouraging unauthorized changes.
A useful B2B submittal should include model codes, electrical ratings, dimensions, weight, photometric files, mounting drawings, driver and control compatibility, declared ingress protection, operating limits, finish options, warranty terms, and replacement-part information. If the project calls for a particular test, listing, or code requirement, state it explicitly and verify the exact configuration rather than relying on a generic marketing page.
For factory-direct procurement, compare vendors on documentation quality, sample consistency, lead-time clarity, packaging, spare-parts support, and change control. Ask how the supplier handles substitutions if an LED board, driver, optic, or finish becomes unavailable. A lower unit price can be offset by field rework or inconsistent batches.
Even a well-designed luminaire can underperform if the pole, bracket, cable gland, junction, aiming, or controls are installed incorrectly. The electrical contractor should follow the manufacturer’s instructions and applicable codes. Waterfront conditions also make careful routing, sealing, bonding, and hardware selection important.
Commissioning should verify fixture model and location, mounting and tilt, control response, nighttime appearance, dark areas, excessive spill, and visible glare. Record final settings so future maintenance does not unintentionally change the design.
No single rating answers every project question. IP65 addresses enclosure ingress protection under its applicable test framework, but buyers must separately evaluate corrosion exposure, mechanical conditions, electrical design, mounting, maintenance, and local requirements.
The correct choice depends on the task and geometry. Area lights with controlled distributions may suit parking and circulation zones, while carefully aimed floodlights may serve defined service tasks. Photometric modeling should determine the selection.
Use task-focused layouts, shielded fixtures, appropriate mounting heights, controlled optics, careful aiming, minimum necessary output, and dimming or scheduling. Verify the result from shoreline and water-facing viewpoints.
Verify the exact model configuration, documentation, photometric performance, mounting hardware, control compatibility, finish, sample quality, packaging, warranty, lead time, and replacement-part plan.
Guangzhou Vantone Science & Technology Co., Ltd. supports B2B outdoor LED lighting inquiries for parking, circulation, perimeter, service, and waterfront commercial applications. Send your site plan, mounting conditions, target zones, operating schedule, control requirements, and procurement quantity. Our team can help organize a fixture shortlist and the technical information needed for project review.
Contact Vantone for a factory-direct outdoor LED lighting quotation and project discussion.
