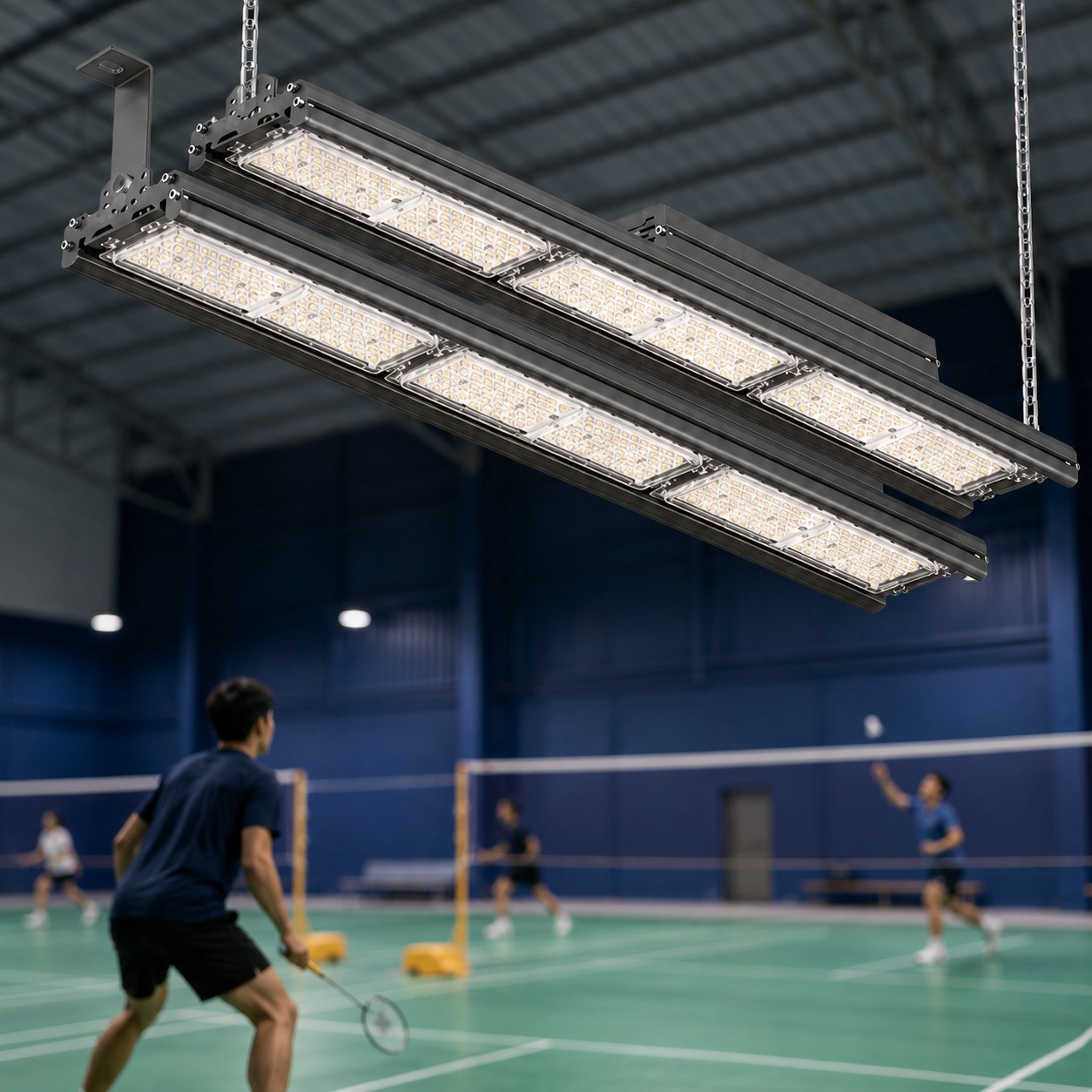

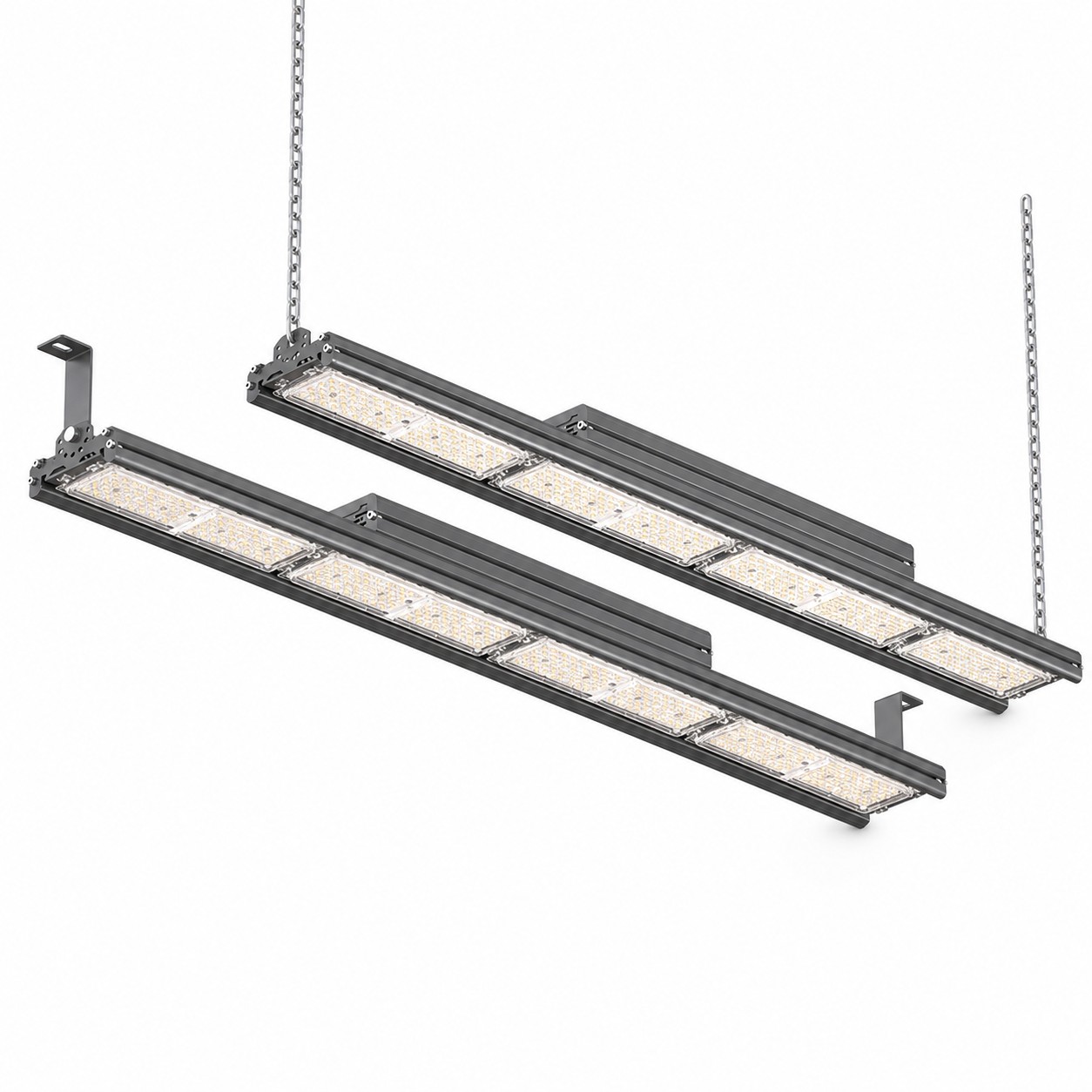

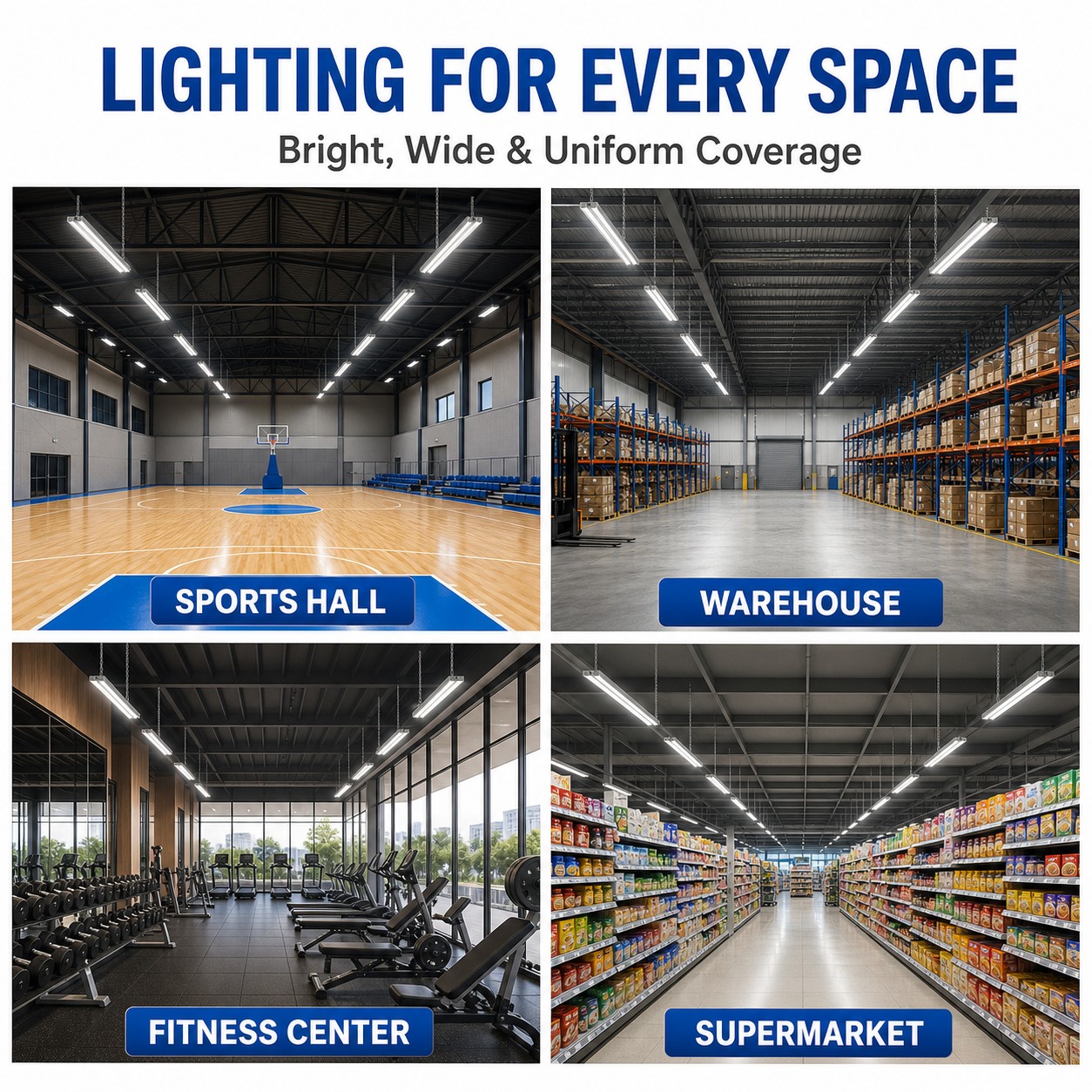

BD-007 is a modular LED linear flood light for sports halls and commercial high-bay applications. One- to four-module models provide 50W to 200W output with selectable 60, 90 or 120-degree optical lenses.
| Item | 1 Module | 2 Modules | 3 Modules | 4 Modules |
|---|---|---|---|---|
| Power | 50W | 100W | 150W | 200W |
| LED Quantity | 96 pcs | 192 pcs | 288 pcs | 384 pcs |
| Fixture Size | 264 x 104 x 72 mm | 510 x 104 x 72 mm | 754 x 104 x 72 mm | 1002 x 104 x 72 mm |
| LED Type | 3030 | 3030 | 3030 | 3030 |
| Luminous Efficacy | 150-170 lm/W | 150-170 lm/W | 150-170 lm/W | 150-170 lm/W |
| PCB Option | 12C / 24C compatible | 12C / 24C compatible | 12C / 24C compatible | 12C / 24C compatible |
| Cable | 3 x 0.75 mm2 | 3 x 0.75 mm2 | 3 x 0.75 mm2 | 3 x 0.75 mm2 |
| Power Factor | >0.95 | >0.95 | >0.95 | >0.95 |
| Input Voltage | AC100-265V | AC100-265V | AC100-265V | AC100-265V |
| Lens | 24-in-1, 60 / 90 / 120 degrees optional | 24-in-1, 60 / 90 / 120 degrees optional | 24-in-1, 60 / 90 / 120 degrees optional | 24-in-1, 60 / 90 / 120 degrees optional |
OEM / ODM customization is available for confirmed project options.
