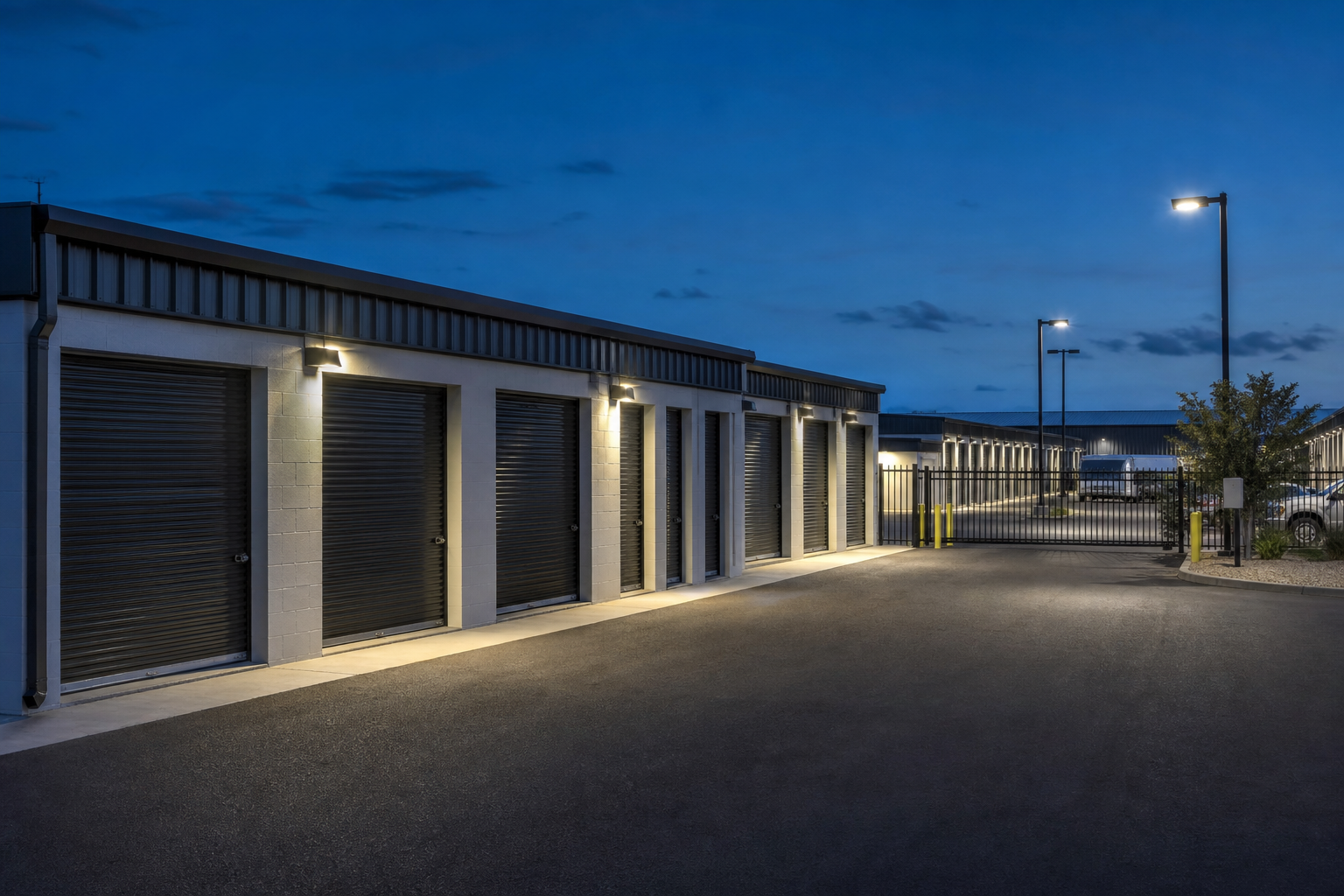

For owners, developers, distributors, and electrical contractors, specifying outdoor LED lighting for U.S. self-storage facilities requires more than choosing a bright wall pack. A typical property combines drive-up units, internal vehicle lanes, pedestrian access, gates, offices, loading areas, perimeter edges, and sometimes covered or multistory spaces. Each zone has a different visual task, operating schedule, mounting condition, and maintenance risk.
A useful procurement package connects photometric performance, glare control, controls, enclosure protection, installation details, and lifecycle support. It should help bidders price the same scope and give facility teams a clear basis for commissioning after installation.
Start with a site plan rather than a fixture schedule. Mark drive-up unit rows, circulation lanes, gate approaches, keypads, office entrances, pedestrian routes, loading spaces, refuse areas, perimeter fencing, and neighboring properties. Record mounting surfaces, available poles, luminaire heights, setbacks, obstructions, and areas covered by surveillance cameras.
Then define the task in each zone. Unit doors need enough vertical and horizontal visibility for customers to identify locks, handles, labels, and belongings. Vehicle lanes need uniform guidance with limited dark bands. Gate and keypad areas require clear approach visibility without placing a bright source directly in a driver's line of sight. Perimeter lighting should cover the intended boundary without throwing uncontrolled light beyond the property.
Ask suppliers for a photometric layout using the actual building and lane geometry. Compare maintained illuminance, uniformity, maximum-to-minimum relationships where required, and light at the property line. Fixture wattage and total lumens alone cannot show whether a layout will be comfortable or useful.

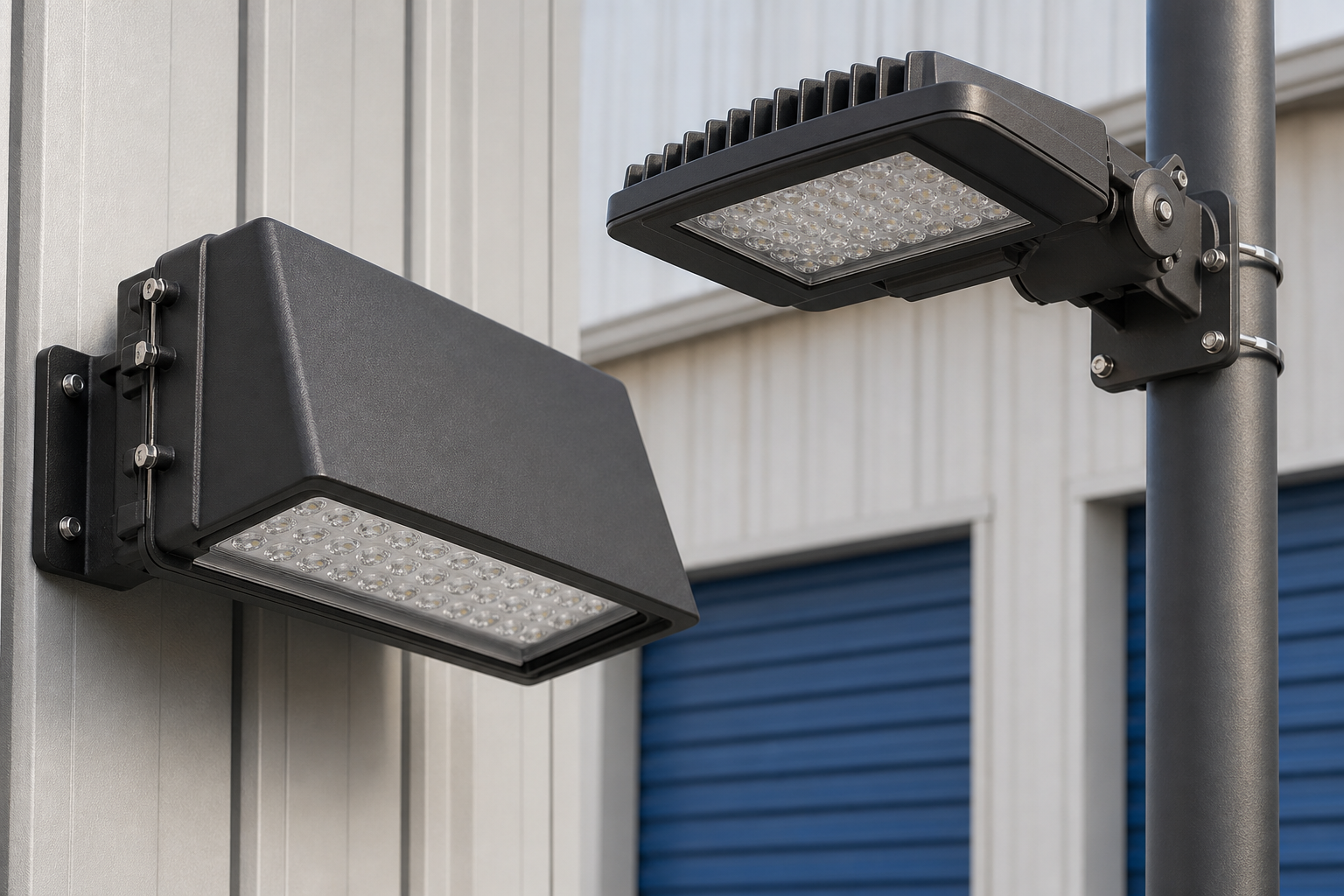

Wall-mounted luminaires can efficiently serve doors and narrow lanes when their distribution matches the setback and mounting height. Pole-mounted area lights may be better for wider intersections, gate queues, parking areas, and open perimeter zones. Canopy or linear luminaires may suit covered loading spaces. A consistent product family can simplify appearance and spare parts, but one optic should not be forced onto every application.
The U.S. Department of Energy's exterior-lighting procurement guidance covers wall-mounted, pole-mounted area and roadway, parking, and floodlight categories. It emphasizes product efficiency, recognized performance testing, controls, and lifecycle evaluation. For a private self-storage project, these principles are useful comparison tools even when federal purchasing rules do not apply.
Request photometric files and identify the exact optic in every line item. A distribution intended for a broad parking lot may waste light when installed close to a storage-building wall. Conversely, a narrow forward throw may create gaps on a wide cross-lane. Require the supplier to state mounting orientation and aiming limits so installers do not improvise on site.
More light is not automatically better visibility. A bright source within the normal view of a driver or customer can cause discomfort and reduce the ability to see lower-contrast details. Use recessed optics, shielding, sensible mounting heights, and distributions that keep the source out of common sightlines. Check views from the entrance gate, unit doors, office windows, adjacent roads, and neighboring properties.
The U.S. National Park Service's outdoor-lighting principles recommend lighting only where and when needed, using shielded fixtures, applying the minimum suitable level, and using controls. These ideas translate well to commercial properties: direct useful light onto lanes and tasks, limit spill, and avoid upward output. A nighttime mock-up can reveal glare and trespass that are difficult to judge from a catalog image.
Self-storage activity changes by zone and hour, making controls especially important. Define which lights operate from dusk to dawn, which dim during low-traffic periods, and which respond to occupancy. Gate approaches, keypads, and essential egress routes may need a stable minimum level. Lower-activity rows may use scheduled reduction with occupancy-based increase if the response is smooth and does not leave customers walking into darkness.
The DOE Better Buildings exterior-lighting controls guidance covers scheduling, light sensors, occupancy sensors, zoning, wiring, and commissioning. Apply those concepts by grouping fixtures according to real operating patterns rather than placing the entire property on one circuit. State time delays, dimmed output, full-output response, daylight settings, manual override, fail-safe behavior, and how settings are documented.
If a networked system is proposed, clarify account ownership, communications requirements, data access, alarm behavior, cybersecurity responsibilities, licensing costs, and operation when connectivity is unavailable. A simpler local system may be appropriate for some sites, while multi-property operators may value centralized fault and energy reporting.
Outdoor luminaires face rain, wind-driven dust, insects, temperature cycles, cleaning, and physical contact during facility operations. State the required environmental conditions and ask how the complete installed assembly maintains protection at lenses, housing joints, cable entries, sensors, and mounting points. IEC 60529 defines the IP Code used to classify enclosure protection, but an IP designation should be treated as one part of the specification, not a substitute for installation quality.
Request the luminaire operating-temperature range, driver data, surge-protection approach, housing and lens materials, finish information, fastener material, and cable-gland details. In hot climates, evaluate thermal design and the relationship between ambient temperature and expected component life. In coastal or deicing-salt environments, ask the supplier to explain corrosion protection for the housing, bracket, pole hardware, and fasteners.
A factory-direct price is meaningful only when the delivered package fits the project. Require dimensioned drawings, mounting templates, weights, wiring information, branch-circuit requirements, control diagrams, sensor locations, and compatible accessories. Confirm whether wall reinforcement, junction boxes, pole adapters, tenons, photocells, shields, or field wiring connectors are included.
Maintenance teams should be able to identify and replace failed components without changing the lighting design. Ask for driver and surge-device part numbers, replacement procedures, warranty boundaries, expected spare-part availability, and recommended stocking quantities. Record the approved optic, color temperature, output setting, control program, and aiming position for each fixture type.
Commissioning should include more than checking whether every fixture turns on. Verify control zones, schedules, sensor coverage, dimming levels, overrides, and recovery after a power interruption. Walk and drive the property at night. Look for dark bands, direct glare, harsh shadows at doors, excessive brightness at gates, spill beyond the fence, and interference with surveillance views.
Where the project specification includes measured lighting criteria, take readings at the defined grid and conditions. Correct aiming or programming before final acceptance. Save the final drawings, settings, test results, fixture schedule, serial information, warranties, and spare-parts list in the facility handover package.
No. They can work well on narrow rows when mounting and optics are appropriate, but wider intersections, gate queues, parking areas, and open perimeter zones may need pole-mounted area lighting or another distribution.
Not necessarily. A zone-based schedule can maintain suitable minimum levels while reducing output in low-activity areas. Gate, egress, and critical security zones should follow the property's operational and safety plan.
No. The rating addresses enclosure protection under defined conditions. Reliability also depends on cable entries, connectors, mounting, temperature, surge protection, corrosion resistance, workmanship, and maintenance.
Send a scaled site plan, building elevations, mounting locations, lane widths, pole details, operating schedule, control requirements, environmental conditions, target lighting criteria, electrical information, and project quantity.
Guangzhou Vantone Science & Technology Co., Ltd. supports B2B buyers evaluating factory-direct outdoor LED lighting for storage properties, warehouses, parking areas, roads, and industrial sites. Request a project review with your drawings, mounting heights, operating hours, control requirements, target market, and order quantity to prepare a clearer technical and commercial comparison.
