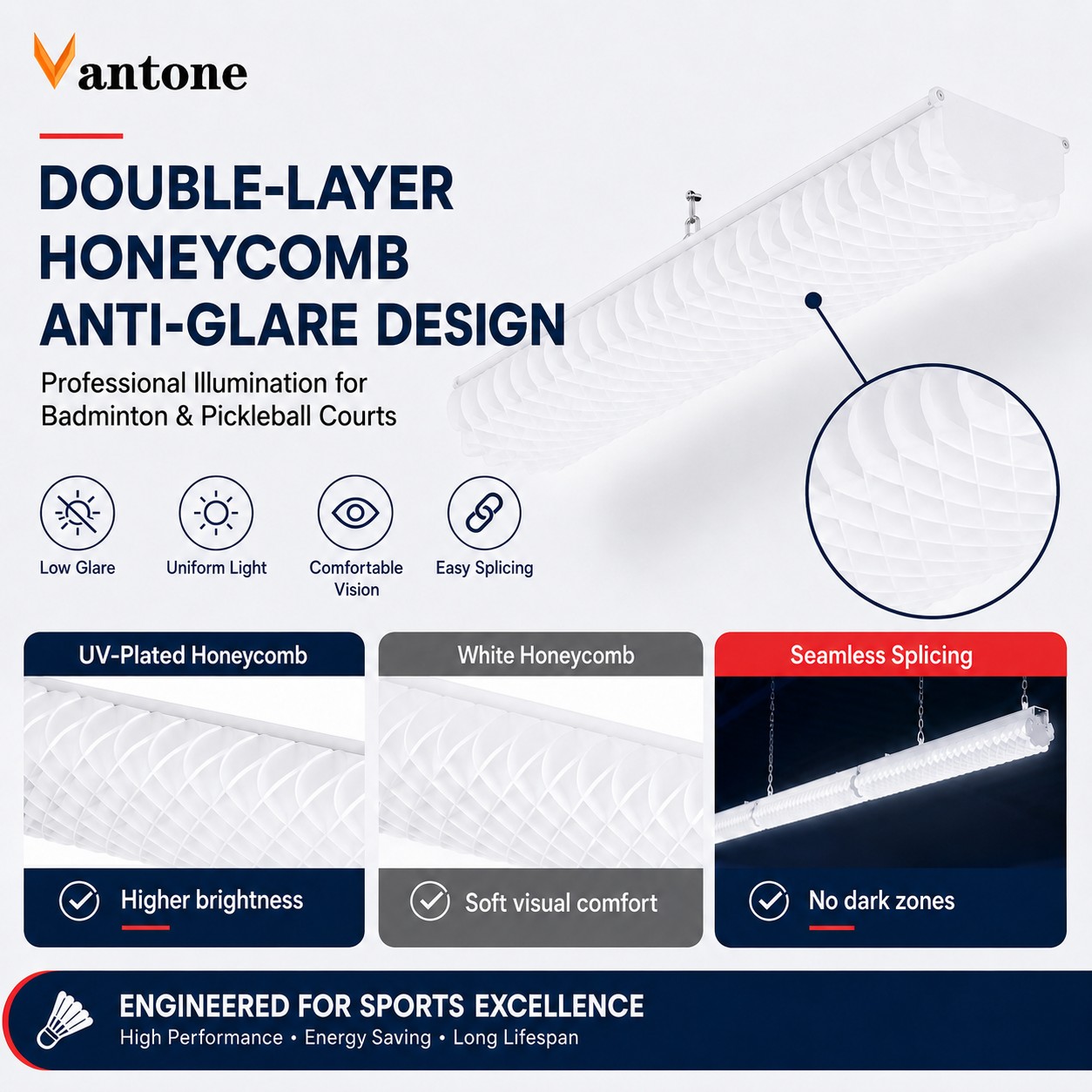

BD-003 uses a curved dragon-scale louver to reduce glare while maintaining wide, uniform court illumination. It is designed for badminton courts, pickleball courts and indoor sports facilities.

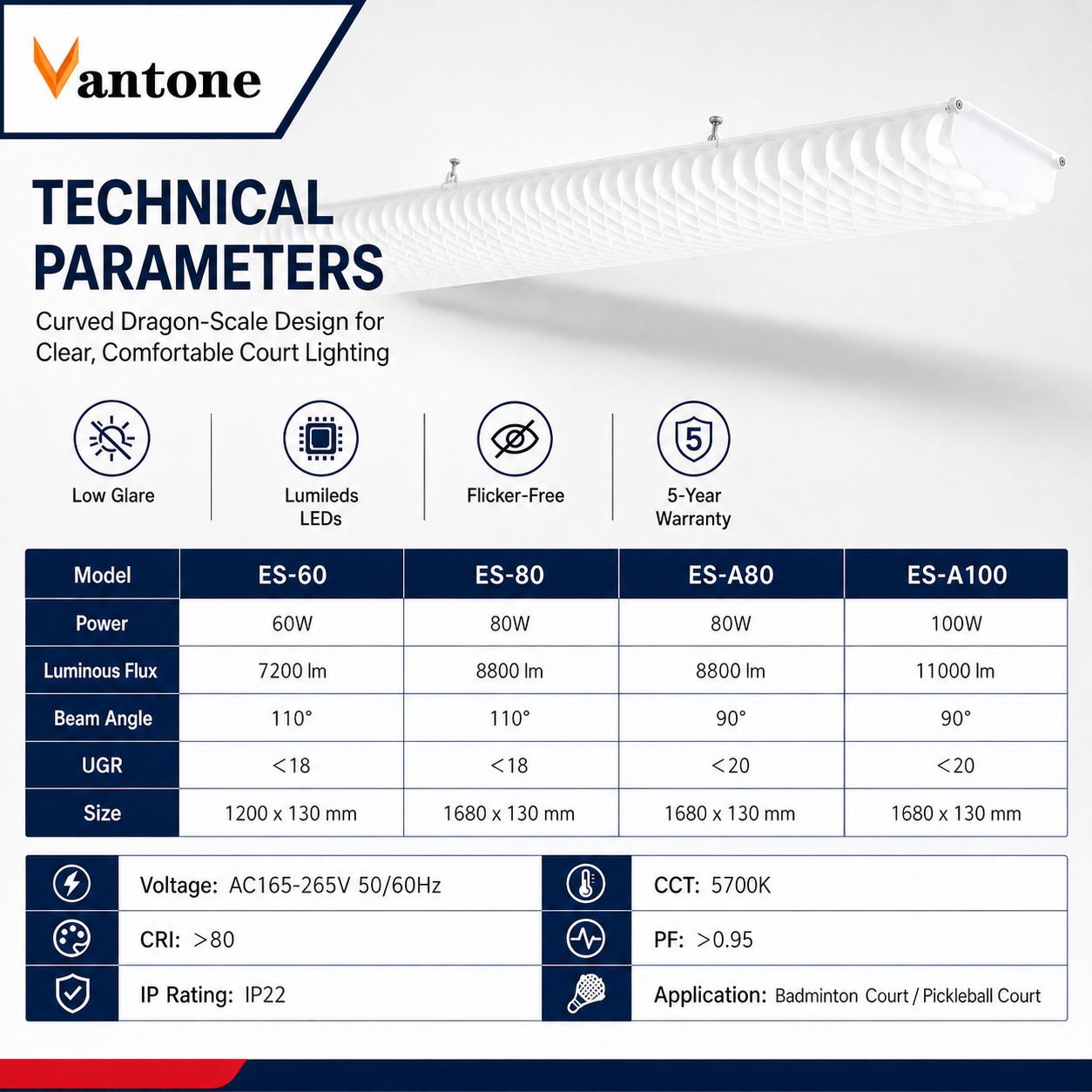

| Item | Details |
|---|---|
| Models | ES-60 / ES-80 / ES-A80 / ES-A100 |
| Power | 60W / 80W / 80W / 100W |
| Luminous Flux | 7200 lm / 8800 lm / 8800 lm / 11000 lm |
| Beam Angle | 110 degrees / 110 degrees / 90 degrees / 90 degrees |
| UGR | <18 / <18 / <20 / <20 |
| Size | 1200 x 130 mm / 1680 x 130 mm / 1680 x 130 mm / 1680 x 130 mm |
| Input Voltage | AC165-265V, 50/60Hz |
| CCT | 5700K |
| CRI | >80 |
| Power Factor | >0.95 |
| IP Rating | IP22 |
| Application | Badminton court / pickleball court |
OEM / ODM customization is available for confirmed project options.
